CLXX26 · A09
Lina-A Linear Pendant
Linear pendant luminaire · 54 W
Lina-A is a direct/indirect linear pendant luminaire available as CL1226 and CL1526. Both models use 54 W, with 7,290 lm and 7,560 lm respectively. Choose the length and fixed colour temperature for your project. A09 provides on/off operation without dimming or sensors.
- Light output
- Up to 7,560 lm
- Glare control
- UGR <5 available
- Colour rendering
- CRI ≥80
- Luminous efficacy
- Up to 140 lm/W
Performance values vary by configuration.
Request a quoteConfiguration-specific specifications
| Model code | CL1226-54W-A09 | CL1526-54W-A09 |
|---|---|---|
| Total luminous output | 7,290 lm | 7,560 lm |
| Luminous efficacy | 135 lm/W | 140 lm/W |
| UGR | <5 | <10 |
| Beam angles | Indirect 111° / Direct 54° | Indirect 111° / Direct 56° |

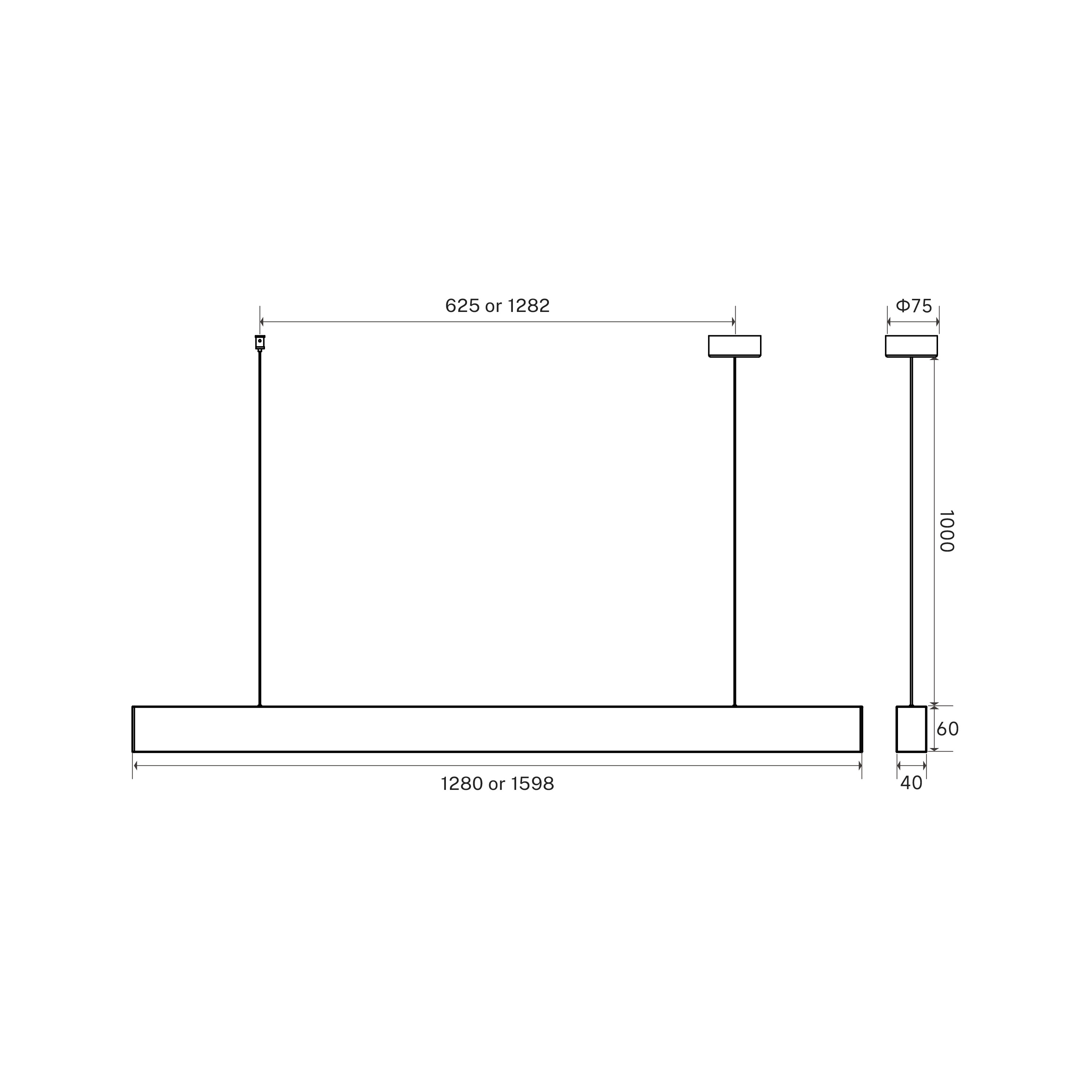

| Dimensions (parameter sheet) | 1280 × 40 × 60 mm | 1598 × 40 × 60 mm |
| Carton dimensions | 1420 × 310 × 235 mm | 1735 × 310 × 235 mm |
- Total luminous output
- 7,290 lm
- Luminous efficacy
- 135 lm/W
- UGR
- <5
- Beam angles
- Indirect 111° / Direct 54°
- Dimensions (parameter sheet)
- 1280 × 40 × 60 mm
- Carton dimensions
- 1420 × 310 × 235 mm
- Total luminous output
- 7,560 lm
- Luminous efficacy
- 140 lm/W
- UGR
- <10
- Beam angles
- Indirect 111° / Direct 56°
- Dimensions (parameter sheet)
- 1598 × 40 × 60 mm
- Carton dimensions
- 1735 × 310 × 235 mm
Shared specifications
