CLXX26 · A07

Lina-B Linear Pendant

Linear pendant luminaire · 54 W

Lina-B is a direct/indirect linear pendant luminaire available as CL1226 and CL1526. Both models use 54 W, with 6,210 lm and 6,210 lm respectively. Choose the length and fixed colour temperature for your project. A07 provides on/off operation without dimming or sensors.

Light output: 6,210 lm
Glare control: UGR <18
Colour rendering: CRI ≥80
Luminous efficacy: 115 lm/W

Configuration-specific specifications

Compare configurations
Model code	CL1226-54W-A07	CL1526-54W-A07
Beam angles	Indirect 113° / Direct 70°	Indirect 114° / Direct 70°

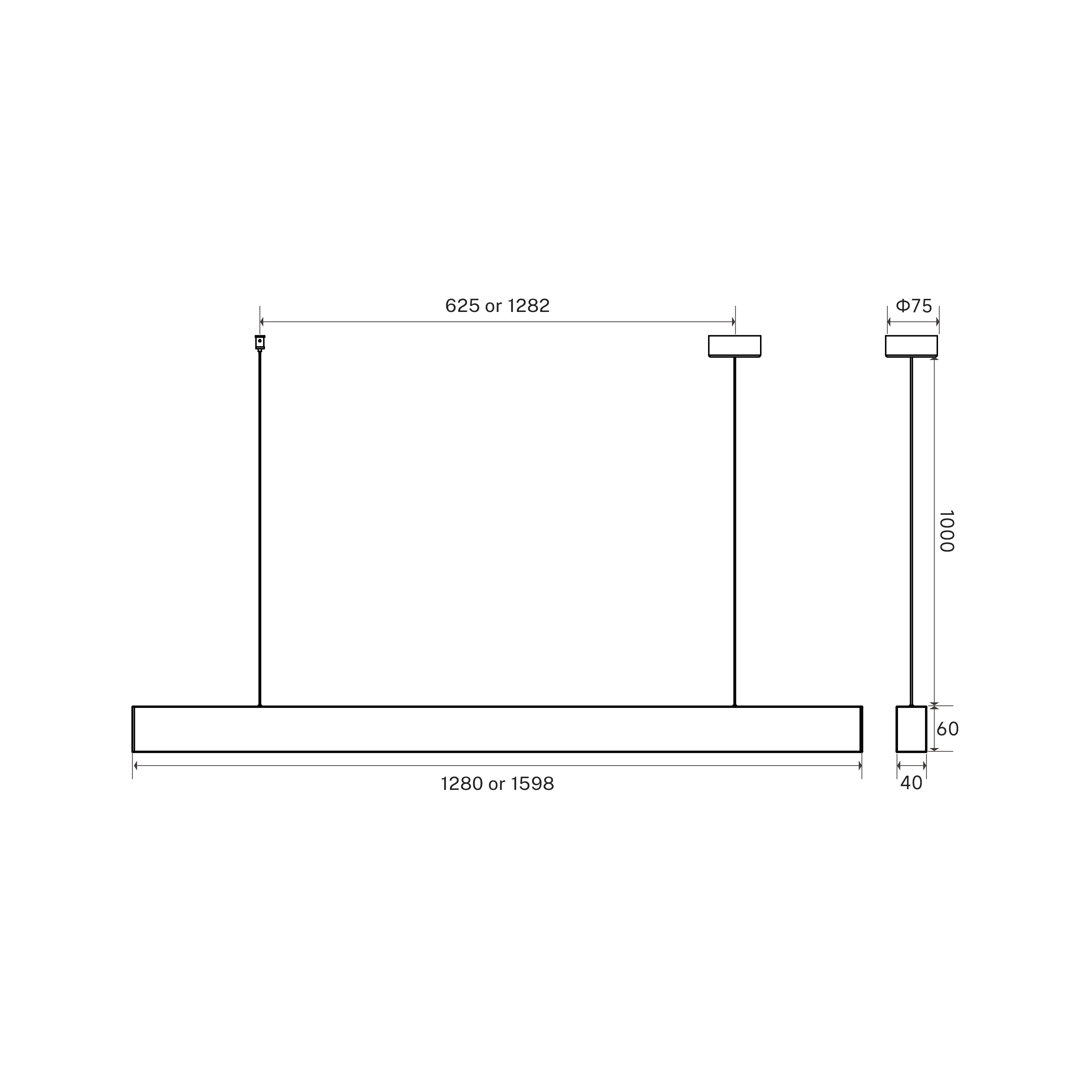

Dimensions (parameter sheet)	1280 × 40 × 60 mm	1598 × 40 × 60 mm
Carton dimensions	1420 × 310 × 235 mm	1735 × 310 × 235 mm

Beam angles: Indirect 113° / Direct 70°
Dimensions (parameter sheet): 1280 × 40 × 60 mm
Carton dimensions: 1420 × 310 × 235 mm

Shared specifications

Photometric Data

Input power: 54 W
Total luminous output: 6,210 lm
Luminous efficacy: 115 lm/W
Indirect / direct ratio: 50 / 50
Indirect luminous output: 3,105 lm
Direct luminous output: 3,105 lm
Colour temperature: 3000 K / 4000 K / 5000 K / 6000 K
CRI: ≥80
UGR: <18
LED source: Everlight SMD2835

Control & Sensors

Sensors: None
Control interface: On/off · non-dimmable
CCT adjustment: No — fixed CCT selected when ordering

Electrical

Input: AC 200–240 V / 50 Hz
Power factor: >0.9

Construction

Material: Aluminium
Surface finish: Powder coated
Finish: Silver / White / Black
Protection rating: IP40
Cable length: 1 m

Lifetime & Warranty

LED lifetime: ≥36,000 h
Operating temperature: 0–40 °C
Warranty: 3 or 5 years, subject to quotation

Downloads

Product specifications

Installation & operation manual

Test reports
