CLXX26 · A10

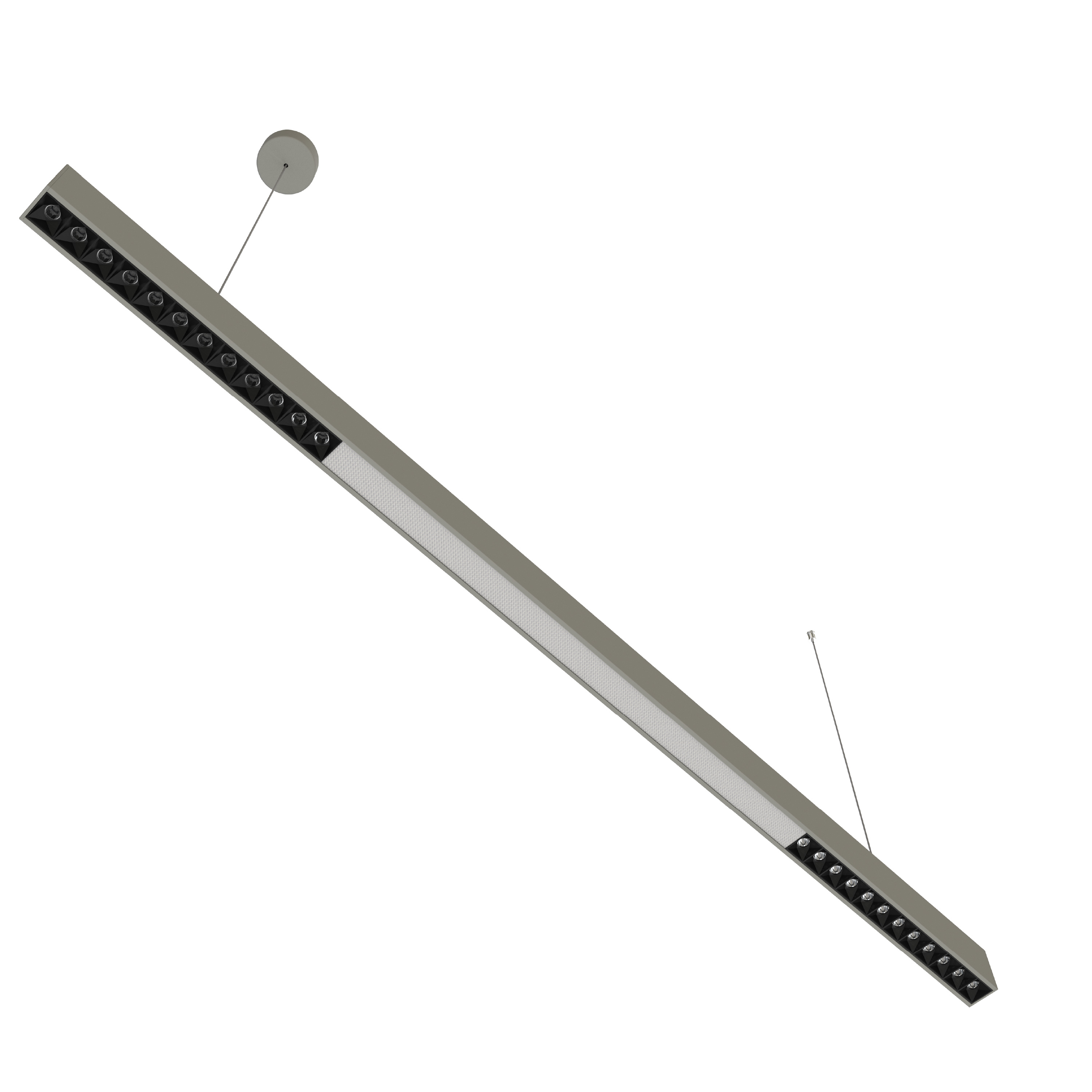

Lina-C Linear Pendant
Linear pendant luminaire · 54 W
Lina-C is a direct/indirect linear pendant luminaire available as CL1226 and CL1526. Both models use 54 W, with 7,290 lm and 7,290 lm respectively. Choose the length and fixed colour temperature for your project. A10 provides on/off operation without dimming or sensors.
- Light output
- 7,290 lm
- Glare control
- UGR <10
- Colour rendering
- CRI ≥80
- Luminous efficacy
- 135 lm/W
Configuration-specific specifications
| Model code | CL1226-54W-A10 | CL1526-54W-A10 |
|---|---|---|
| Indirect / direct ratio | 60 / 40 | 65 / 35 |
| Indirect luminous output | 4,374 lm | 4,739 lm |
| Direct luminous output | 2,916 lm | 2,550 lm |
| Beam angles | Indirect 116° / Direct 54° | Indirect 112° / Direct 55° |
| Dimensions (parameter sheet) | 1280 × 40 × 60 mm | 1598 × 40 × 60 mm |
| Carton dimensions | 1420 × 310 × 235 mm | 1735 × 310 × 235 mm |
- Indirect / direct ratio
- 60 / 40
- Indirect luminous output
- 4,374 lm
- Direct luminous output
- 2,916 lm
- Beam angles
- Indirect 116° / Direct 54°

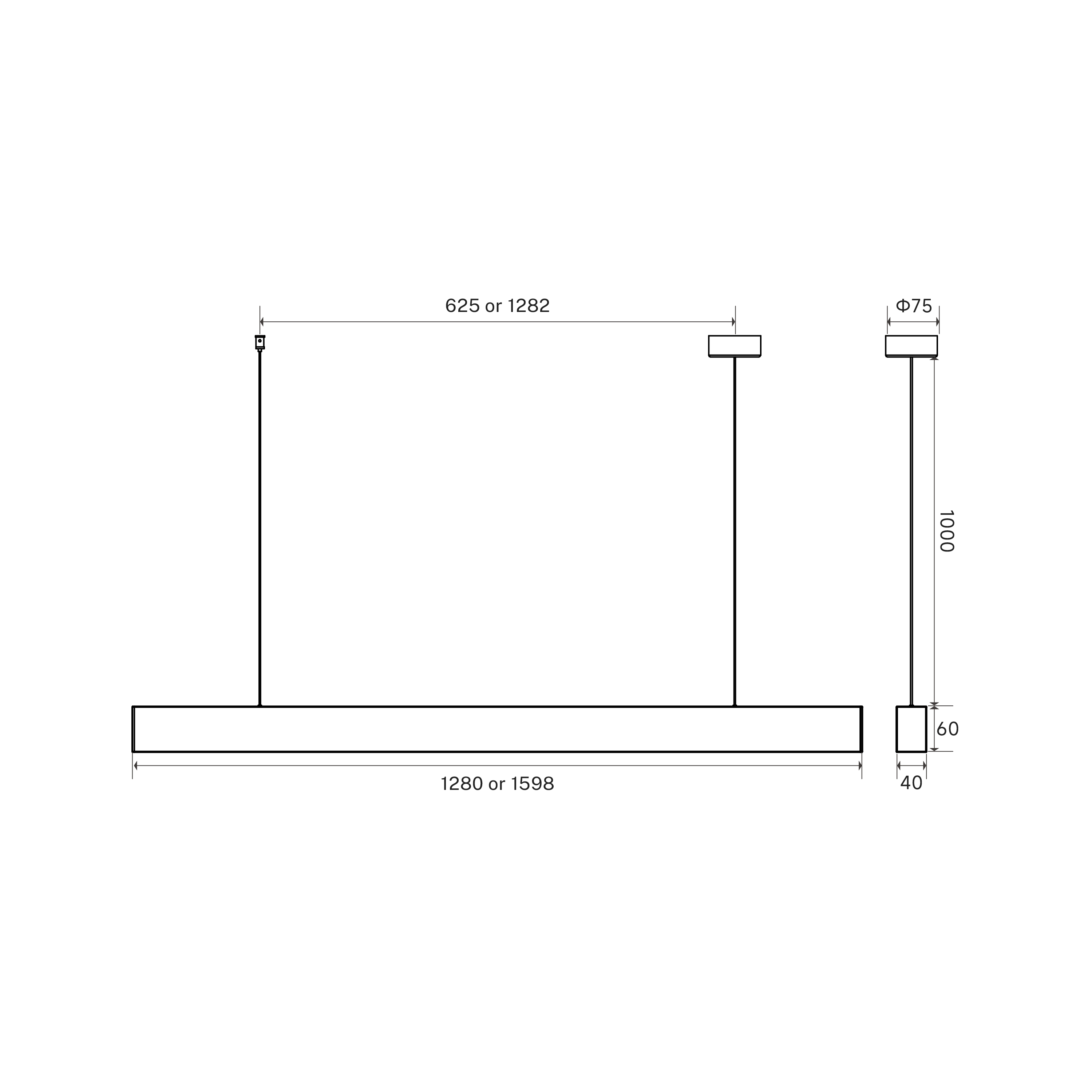

- Dimensions (parameter sheet)
- 1280 × 40 × 60 mm
- Carton dimensions
- 1420 × 310 × 235 mm
- Indirect / direct ratio
- 65 / 35
- Indirect luminous output
- 4,739 lm
- Direct luminous output
- 2,550 lm
- Beam angles
- Indirect 112° / Direct 55°
- Dimensions (parameter sheet)
- 1598 × 40 × 60 mm
- Carton dimensions
- 1735 × 310 × 235 mm
Shared specifications
