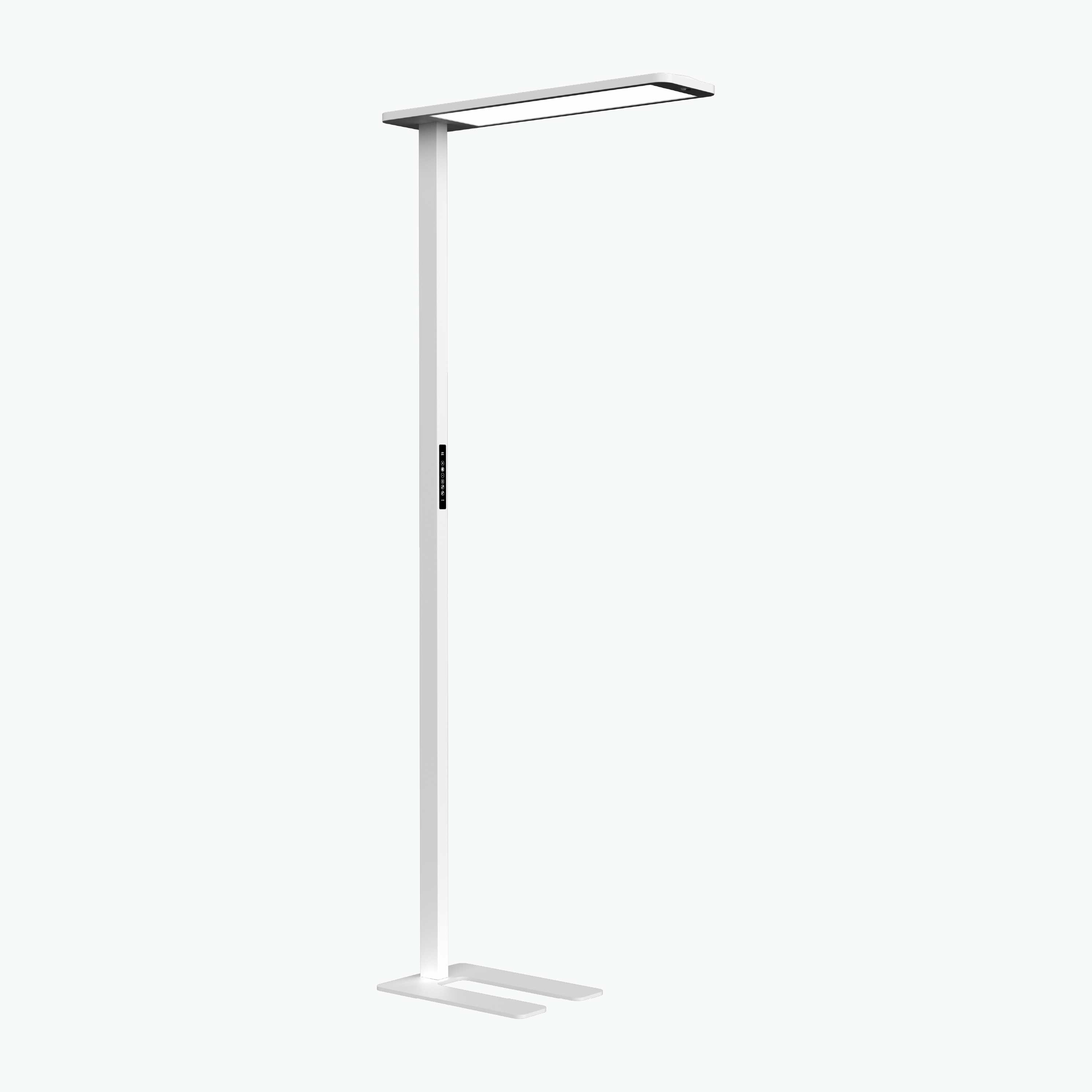

FS0057 Series

Tiga-C Floor Lamp

Office floor lamp · 120 W

Tiga-C is a 120 W direct/indirect office floor lamp with 17,400 lm output and UGR <16. Whole-lamp touch dimming and colour-temperature adjustment, motion and daylight sensors support office lighting, with tunable white from 3000 to 5700 K.

Light output: 17,400 lm
Glare control: UGR <16
Colour rendering: CRI ≥80
Luminous efficacy: 145 lm/W

Specifications

Photometric Data

Model code: BR-FS0057-120W-F10
Input power: 120 W
Total luminous output: 17,400 lm
Luminous efficacy: 145 lm/W
Indirect / direct ratio: 70 / 30
Indirect luminous output: 12,180 lm
Direct luminous output: 5,220 lm
Colour temperature: 3000–5700 K tunable white
CRI: ≥80
UGR: <16
Beam angles: Indirect 108° / Direct 85°
LED source: EBRIGHT SMD2835

Control

Sensors: Motion + daylight

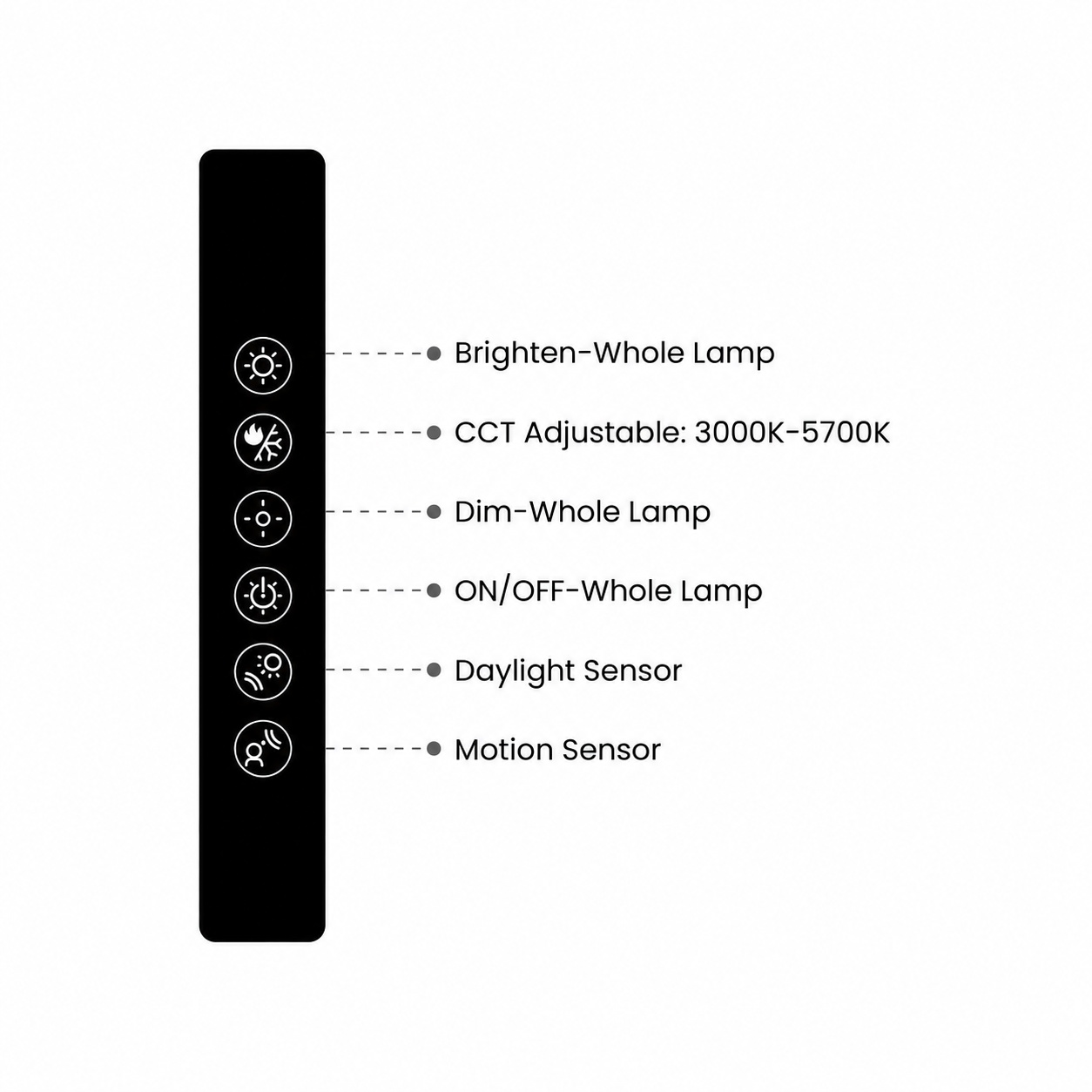

Control interface: Touch control · whole-lamp dimming
CCT adjustment: Yes — 3000–5700 K

Electrical

Input: AC 200–240 V / 50 Hz
Power factor: >0.9

Construction

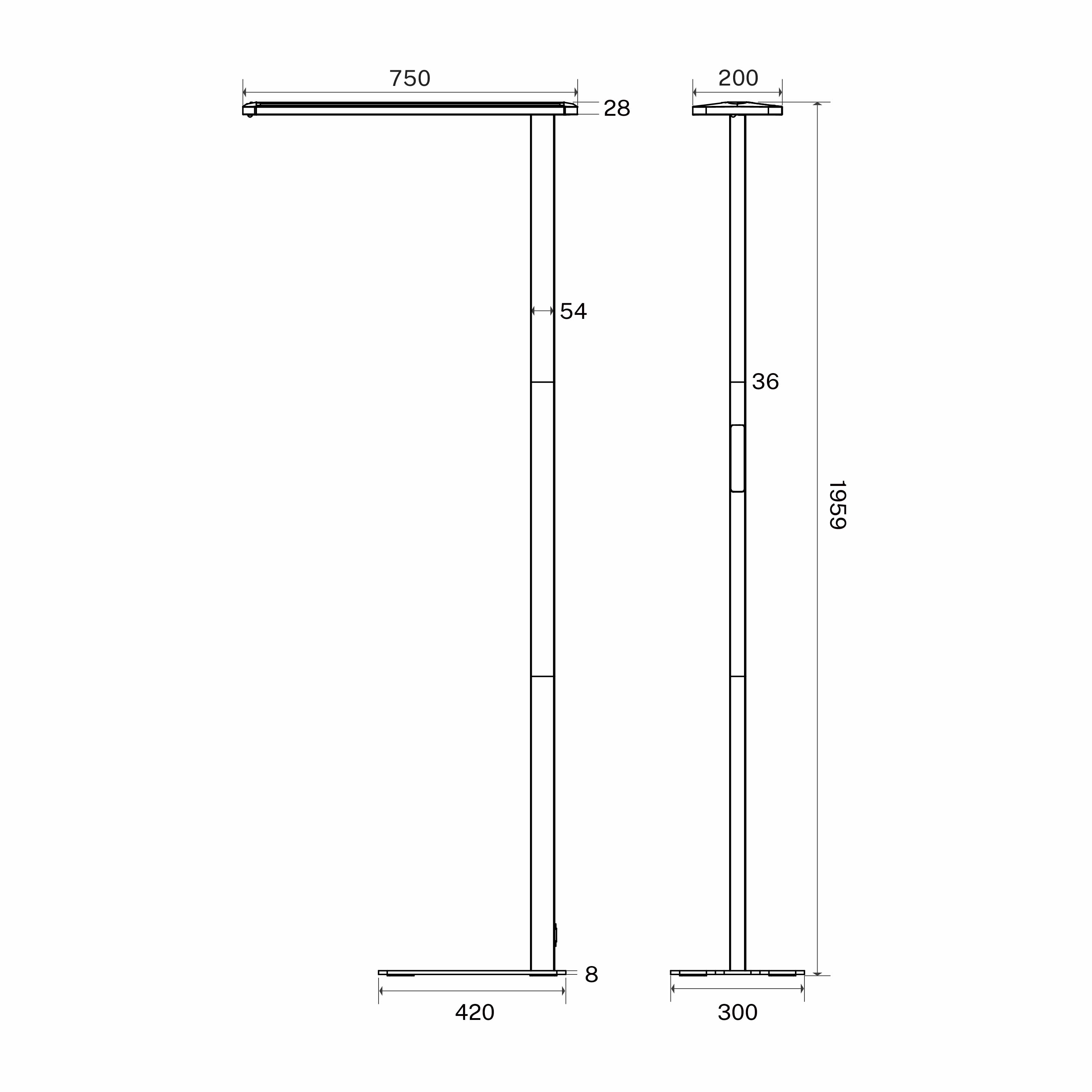

Dimensions (parameter sheet): 750 × 300 × 1959 mm
Material: Aluminium
Surface finish: Powder coated
Finish: Silver / White / Black
Protection rating: IP40
Cable length: 1.8 m

Lifetime & Warranty

LED lifetime: ≥36,000 h
Operating temperature: 0–40 °C
Warranty: 3 or 5 years, subject to quotation
Carton dimensions: 792 × 397 × 167 mm

Downloads

Product specifications

Installation manual · Chinese

Control & operation manual

Test reports
