FS1008 Series

Vatix-C Floor Lamp

Office floor lamp · 100 W

Vatix-C is a 100 W direct/indirect office floor lamp with 12,000 lm output and UGR <10. Choose H10 with one fixed colour temperature or L10 with 3000–5700 K tunable white. Both models offer independent up/down dimming, motion sensing and daylight control.

Light output
12,000 lm
Glare control
UGR <10
Colour rendering
CRI ≥80
Luminous efficacy
120 lm/W
Request a quote

Configuration-specific specifications

Compare configurations
Model codeBR-FS1008-100W-H10BR-FS1008-100W-L10
Colour temperatureFixed CCT — 3000 K / 4000 K / 5000 K / 6000 K options3000–5700 K Tunable White
CCT adjustmentNo — one CCT is selected when orderingYes

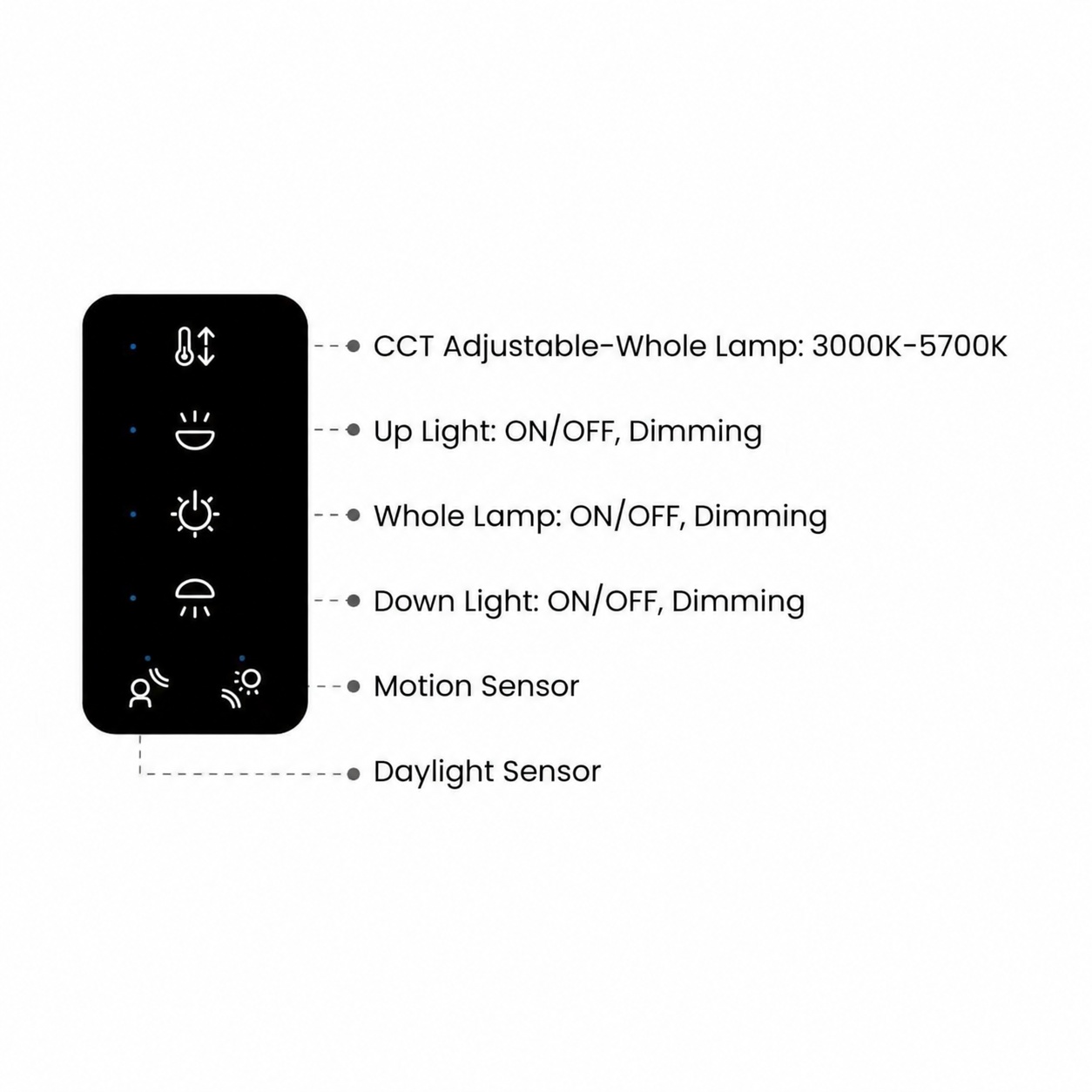

Control interfaceTouch control · direct / indirect independently dimmableTouch control · direct / indirect independently dimmable + CCT control
Colour temperature
3000–5700 K Tunable White
CCT adjustment
Yes
Control interface
Touch control · direct / indirect independently dimmable + CCT control

Shared specifications

Photometric Data

Input power
100 W
Total luminous output
12,000 lm
Luminous efficacy
120 lm/W
CRI
≥80
UGR
<10
Indirect / direct ratio
80 / 20
Indirect luminous output
9,600 lm
Direct luminous output
2,400 lm
Beam angles
Indirect 110° / Direct 74°
LED source
LUMILEDS SMD2835

Control & Sensors

Light channels
Direct / indirect independently dimmable
Sensors
Motion + daylight

Electrical

Input
AC 200–240 V / 50 Hz
Power factor
>0.9

Construction

Dimensions (datasheet)
606 × 450 × 1967 mm
Base footprint
450 × 300 mm
Material
Aluminium
Surface finish
Powder coated
Housing colour code
H3-W561
Protection rating
IP40
Cable length
1.8 m

Lifetime & Warranty

LED lifetime
≥36,000 h
Operating temperature
0–40 °C
Warranty
3 or 5 years, subject to quotation
Carton dimensions
1106 × 510 × 256 mm

Downloads

Vatix-C Floor Lamp
Selected productVatix-C Floor Lamp

BR-FS1008-100W-L10L10 · Tunable White — 100 W

Tell us what you need

Share your quantity and requirements for this product. We usually reply within one business day.

Online enquiry submission is being prepared. Please contact our sales team at info@billled.com.
