FS1005 Series

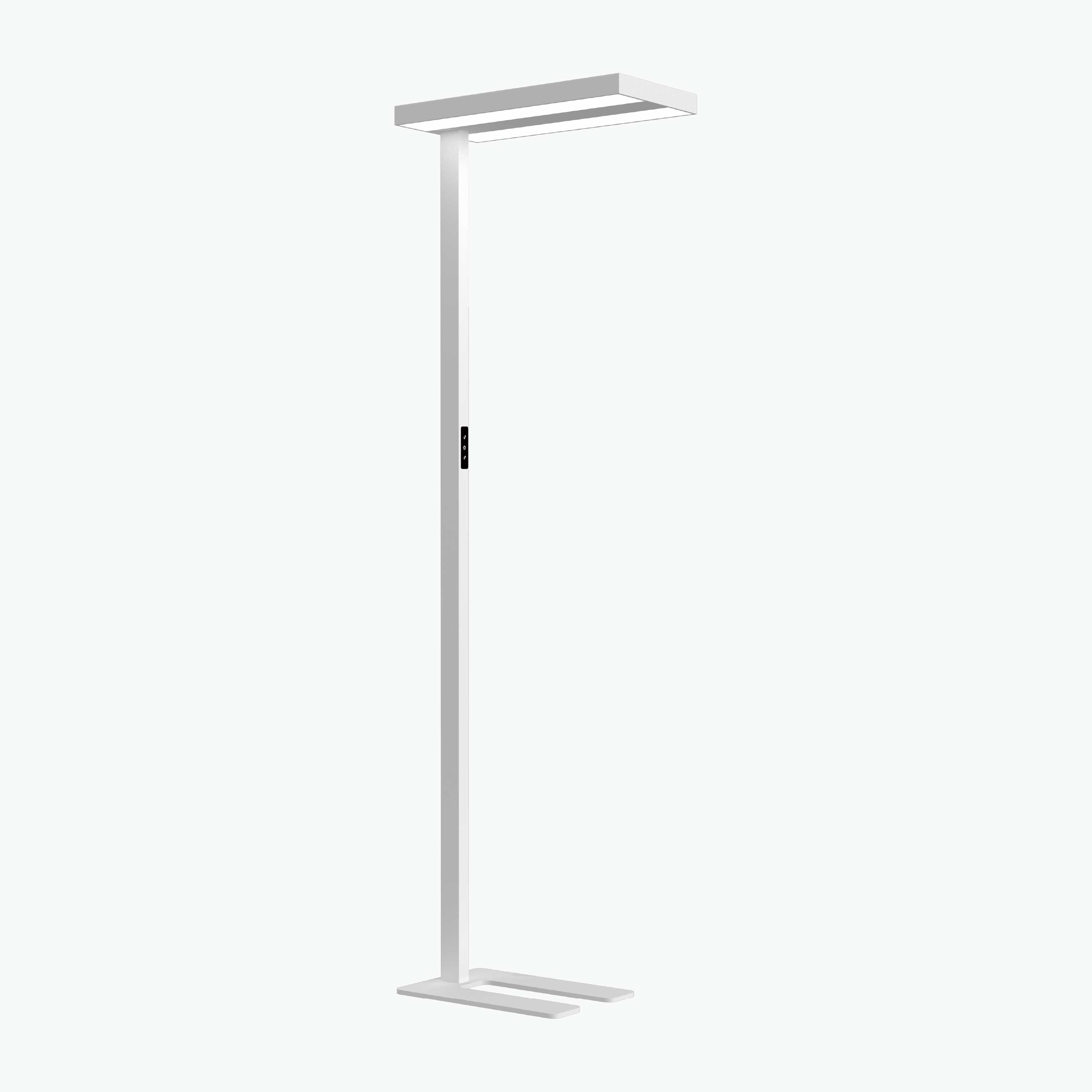

Zakoy-C Floor Lamp

Office floor lamp · 60 W

Zakoy-C is a 60 W direct/indirect office floor lamp with 8,400 lm output and UGR <16. Choose A10 with knob dimming or F10 with whole-lamp touch dimming, motion and daylight sensors. Both versions use a fixed colour temperature selected when ordering.

Light output: 8,400 lm
Glare control: UGR <16
Colour rendering: CRI ≥80
Luminous efficacy: 140 lm/W

Configuration-specific specifications

Compare configurations
Model code	FS1005-60W-A10	FS1005-60W-F10

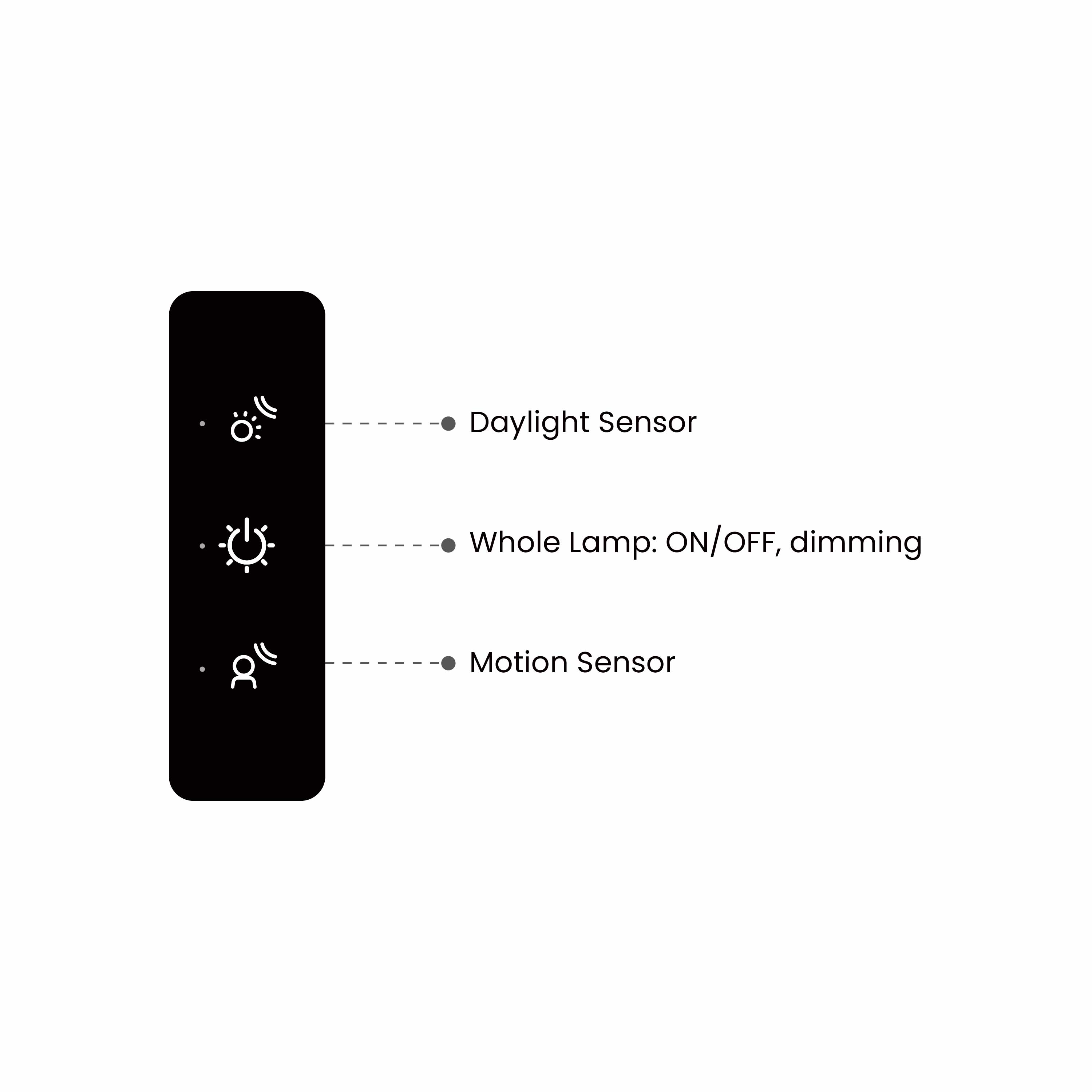

Control panel	Knob control	F10 touch panel shown in gallery
Sensors	None	Motion + daylight
Control interface	Knob dimming	Touch · whole-lamp dimming

Control panel: F10 touch panel shown in gallery
Sensors: Motion + daylight
Control interface: Touch · whole-lamp dimming

Shared specifications

Photometric Data

Input power: 60 W
Total luminous output: 8,400 lm
Luminous efficacy: 140 lm/W
Indirect / direct ratio: 50 / 50

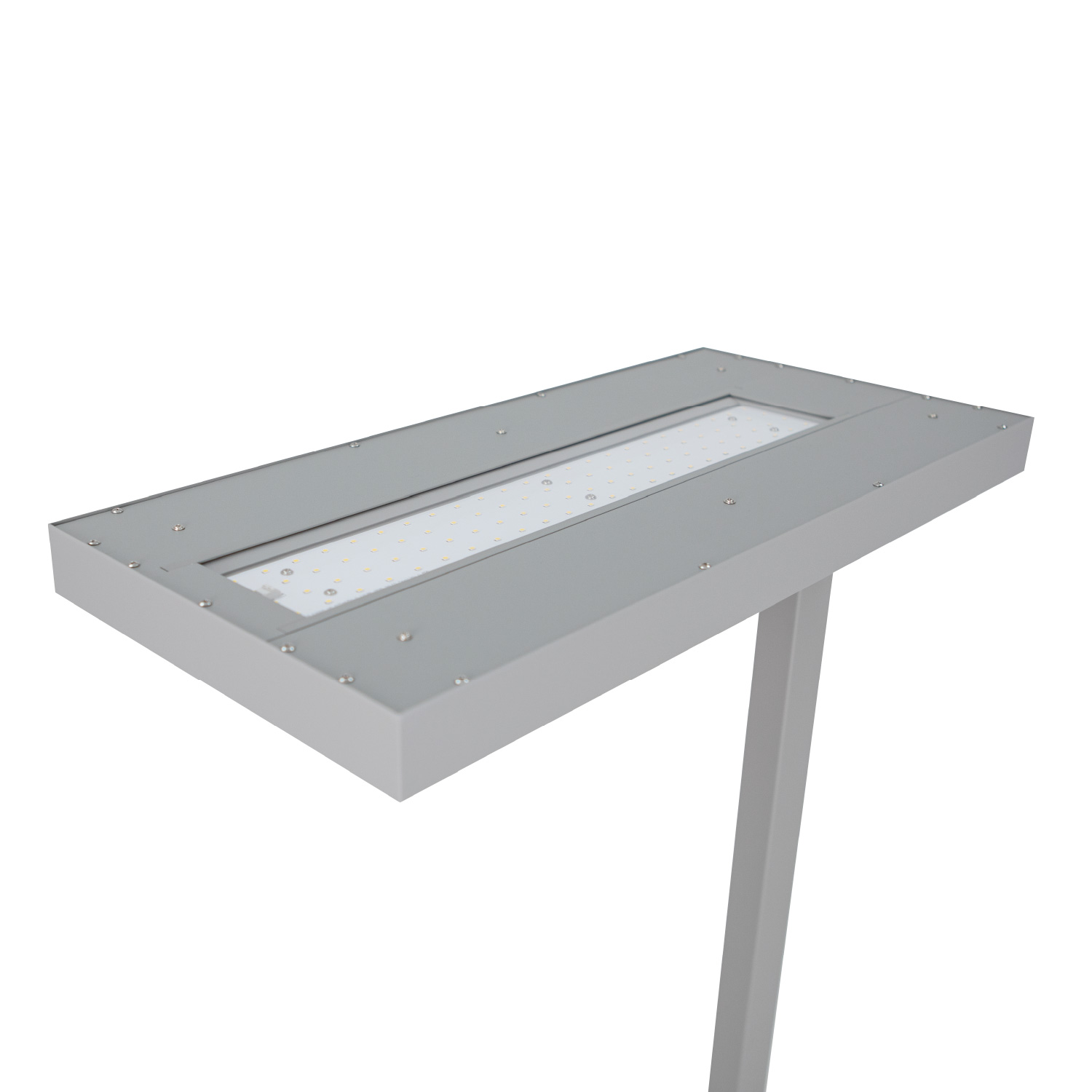

Indirect luminous output: 4,200 lm

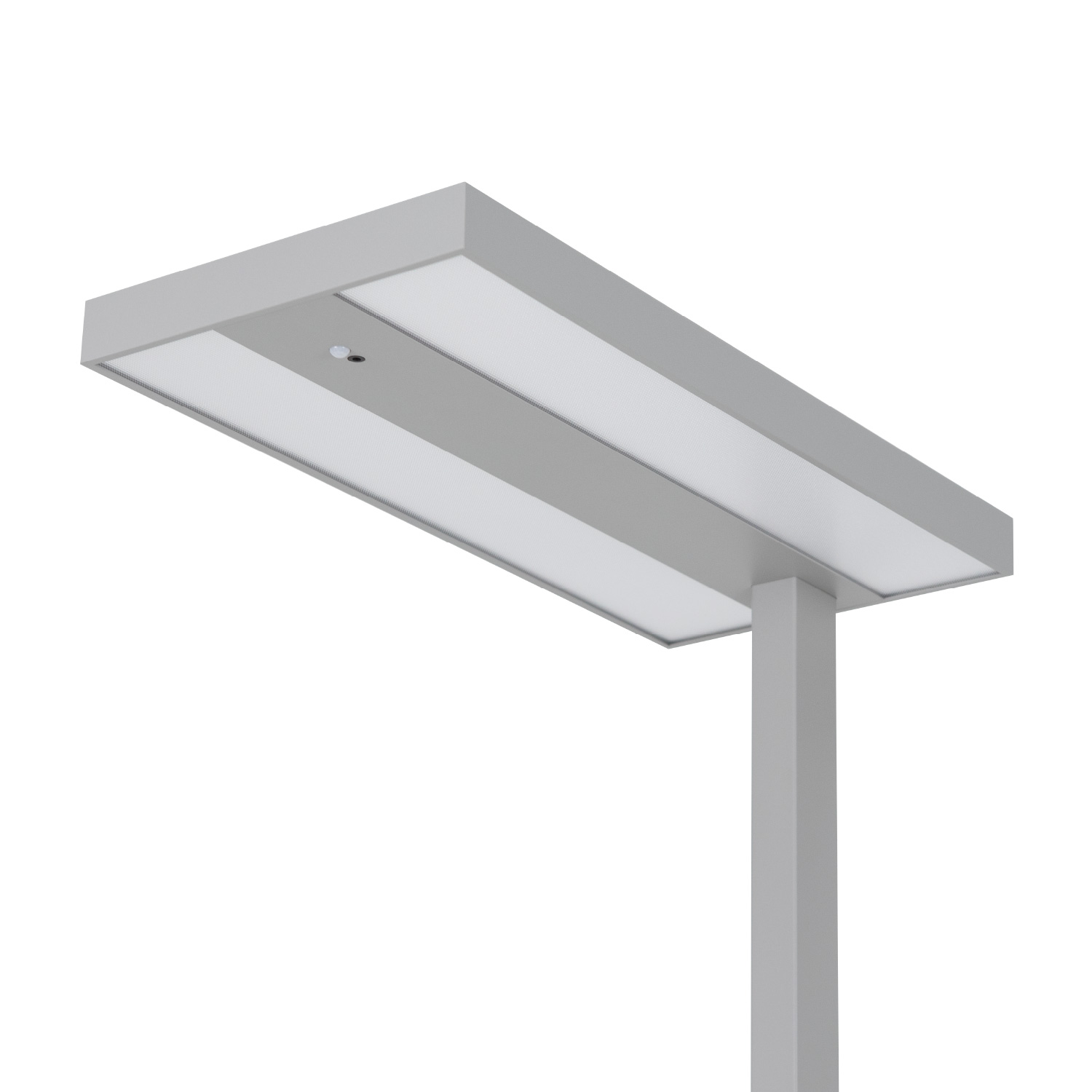

Direct luminous output: 4,200 lm
Colour temperature: 3000 K / 4000 K / 5000 K / 6000 K
CRI: ≥80
UGR: <16
Beam angles: Indirect 113° / Direct 79°
LED source: Everlight SMD2835

Control

CCT adjustment: No — fixed CCT selected when ordering

Electrical

Input: AC 200–240 V / 50 Hz
Power factor: >0.9

Construction

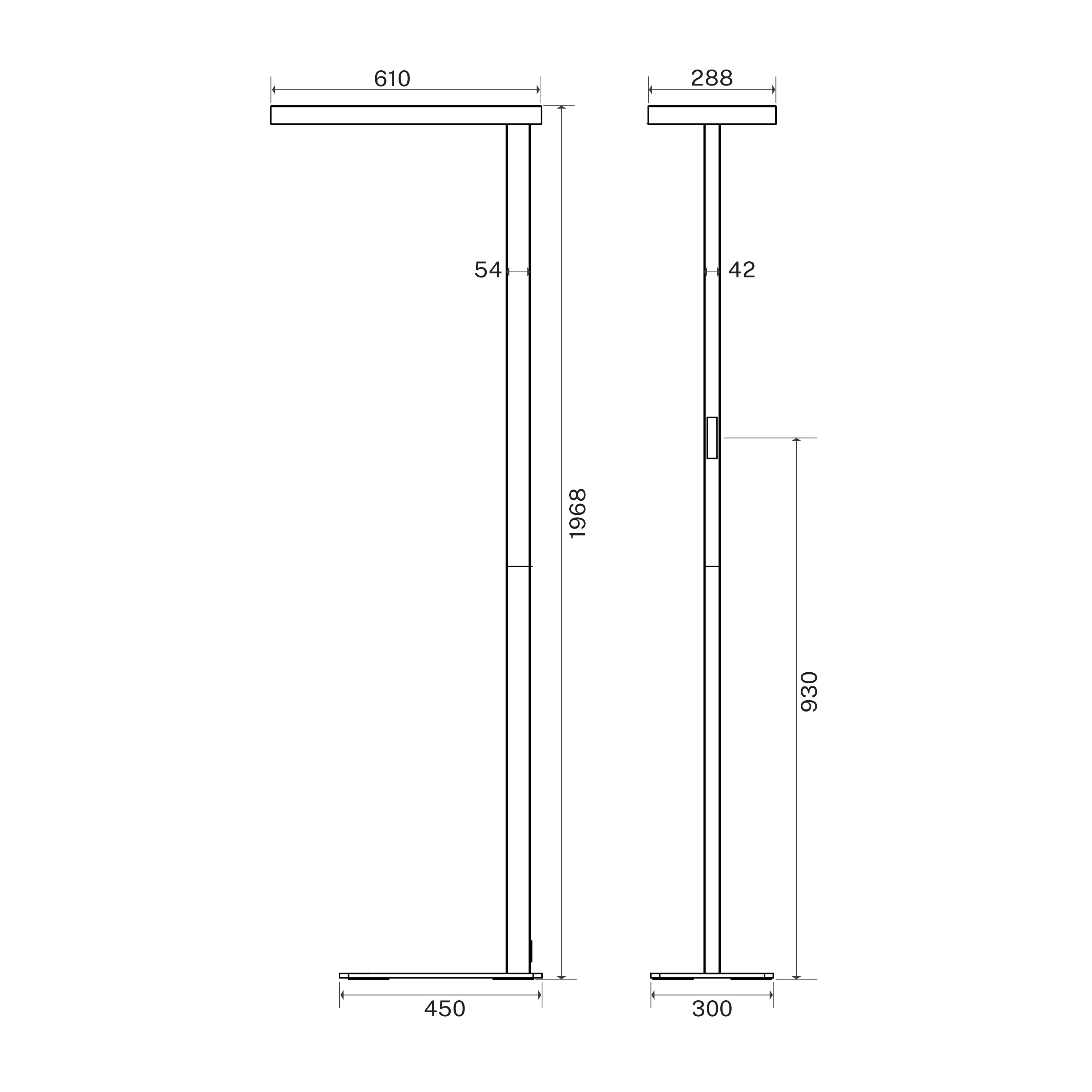

Dimensions (parameter sheet): 610 × 288 × 1968 mm
Material: Aluminium
Surface finish: Powder coated
Finish: Silver / White / Black
Protection rating: IP40
Cable length: 1.8 m

Lifetime & Warranty

LED lifetime: ≥36,000 h
Operating temperature: 0–40 °C
Warranty: 3 or 5 years, subject to quotation
Carton dimensions: 1185 × 375 × 150 mm

Downloads

Product specifications

Installation manual

Control & operation manual · F10

Test reports
